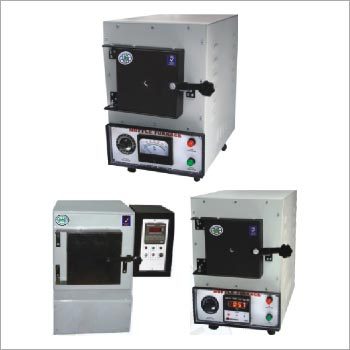

Laboratory Electric Muffle Furnace

Laboratory Electric Muffle Furnace
Laboratory Electric Muffle Furnace
Product Code : 12
Brand Name : UTS
Product Description

Our qualitative approach has enabled us to manufacture and supply an extensive range of Laboratory Electric Muffle Furnace. These furnaces find applications in metallurgical & mining industries and in research labs for calibration and heat treatment purpose. Our diligent personnel team manufactures these furnaces using quality grade mild steel sheet. The quality analysts precisely check the Laboratory Electric Muffle Furnace on functioning and construction parameters to provide a flawless range at client end.

Features:

  • High operational fluency

  • Unmatched performance

  • Longer service life

Characteristics of the Products

  • Outer casing is made of Double walled Thick / CRC/Mild Steel Sheet duly powder coated

  • Better ceramic Blanket High Temp. Insulation to avoid heat loss.

  • Chamber construction includes a long life grooved refractory chamber to support  heating Element on 3 sides through its walls its feature include : quick Temperature rising, Lasting warranty & constant Temperature.

  • Better Precise Digital Temperature Controller Cum Indicator having Alarm facility at high Temp. easy operation.

  • A-1 Super quality Coil shaped Heaters duly wounded (in case of 900C Temp.) & 1200C range coil shaped open heater heavy gauge to stand continuous Temp. up to 1150C.

  • Silicon Rods are provided in case of High Temp. 1350C high Temp. Furnace, supplied with Transformer unit & Pt-Pt RH Thermocouple its control manually & automatically  the Amps. of silicon rods as per Temp. requirement

  • Unique design of ventilation / Chimney provided at the back of the Muffle Furnace (For Fumes outlet)

Applications :

For Calibration, Research Lab. Mining Industries, Industrial application heat Treatment of metals & Chinaware

Specifications :

Model

UTS 1.07/ 1.08 A

UTS 1.07 A/ 1.08 B

UTS 1.07 B/ 1.08 C

UTS 1.07 C/ 1.08 D

UTS 1.07 D/ 1.08 E

Interior (mm)

100 x 100 x 225
4" x 4" x 9"

125 x 125 x 250
5" x 5" x 10"

150 x 150 x 300
6" x 6" x 12"

175 x 175 x 415
7" x 7" x 19"

200 x 200 x 300
8" x 8" x 12'

Heater Wattage "W"

900C/ 1.5 KW
1150C/ 2.5 KW

900C/2.0 KW
1150C/ 3.0 KW

900C/ 3.5 KW
1150C/ 4.0 KW

900C/ 3.5 KW
1150C/ 4.5 KW

900C/ 4.5 KW
1150C/ 4.5 KW

* Dimensions are expressed in (Width x Depth x Height)

Technical Parameters :

Control Panel :

Mains, Load Indicator , Sunvic (ER) Regulator & Mains Indicator, Temp. controller.

Temperature Range :

Ambient to 900 C
Ambient to 1150 C
Ambient to 1350 C

Temperature Stability :

+-2C or better

Duty Cycle :

Continuous

Insulation :

High Ceramic Blanket & Board Insulation

Housing Material :

CRC / Mild Steel Sheet duly Powder Coated

Optional :

Outer body of S.S 304 grade (Can be made against order)

Interior :

Ceramic Board & Grooved Refractory Chamber as per Temp. Requirement

Power Consumption :

Single Phase 220/230V, AC +- 10% 50Hz & 3 phase 440V

Optional :

RS 232 Communication interface
